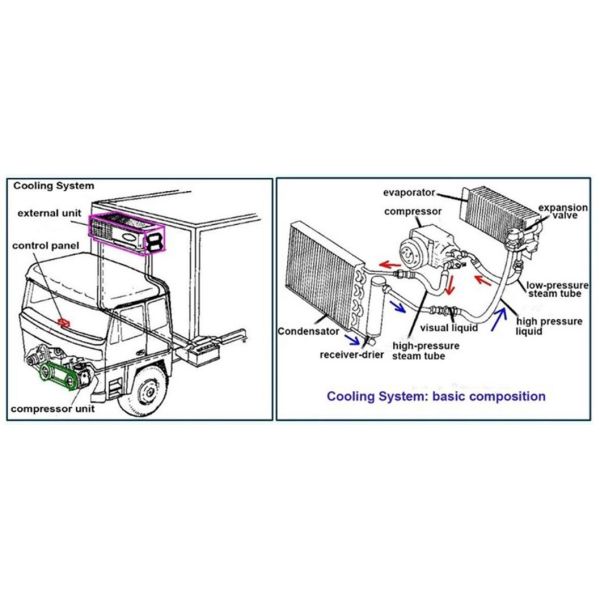

Sinotruk HOWO Refrigerator Wagon Car Cooling System Meat Hook Vehicles
Sinotruk HOWO refrigerated wagon with meat hook vehicles is a specialized cold chain transport truck designed for the safe and hygienic transport of hanging meat carcasses.
Meat Hook & Ventilation System
The meat hook configuration requires specific interior modifications to ensure hygiene, ease of loading, and proper air circulation around the cargo.
Meat Hook System:
- Rails: Aluminum alloy or stainless steel rails are installed on the inner roof of the box.
- Hooks: Movable meat hooks are suspended from these rails, allowing the carcasses (often beef, pork, or lamb halves/quarters) to be hung for transport. Hanging the meat prevents bruising and allows cold air to circulate around the entire surface area.
Ventilation:
- T-Shaped Floor Grooves: The most critical feature is the use of T-shaped or grooved aluminum alloy ventilation channels on the floor of the wagon.
- Purpose: This design creates a gap between the cargo (even if not hanging) and the floor, and crucially, allows the cold air to flow under and around the suspended meat. Proper cold air circulation is vital for maintaining a consistent temperature and preventing spoilage.
- Hygiene and Durability: The interior is designed to be waterproof and corrosion-resistant, often utilizing stainless steel for the door frames, hinges, and corner protectors to withstand the demanding conditions of meat transport and cleaning.
Key Specifications
- Model: Sinotruk HOWO Refrigerated Wagon / Meat Hook Truck
- Purpose: Cold chain transportation of hanging meat (beef, pork, lamb) and other chilled goods
- Special Feature: Meat hook rail system inside insulated cargo box
- Temperature Range: -5°C to -20°C (customizable by unit)
Sinotruk HOWO Refrigerator Wagon Car Cooling System Meat Hook Vehicles Technical sheet :
| Component | Common Specifications / Range | Notes |
| Chassis Brand | Sinotruk HOWO (various light to heavy-duty models) | Chassis configuration varies, e.g., 4x2, 6x4. |
| Driving Type | 4x2 (common for mid-size) or 6x4 (for heavy-duty) |
| Payload Capacity (Rated) | 3 tons to 20 tons (approx. 5,000 kg to 30,000 kg GVW) | Depends heavily on the specific truck model. |
| Engine | SINOTRUK or Cummins (e.g., ISF3.8, WD615 series) | Horsepower ranges from approximately 116 HP to 371 HP+. |
| Emission Standard | Euro 2, Euro 3, or Euro 4 (varies by market and age) |
| Transmission | Manual (e.g., 6 forward & 1 reverse, 8 or 10-speed) |
| Refrigeration Unit Brand | Imported: Thermo King, Carrier (common premium options) | Often non-independent (engine-driven) for light/mid-duty, or independent for heavy-duty/freezer applications. |
| Chinese: Hanxue, Huatai, etc. (optional) |
| Temperature Range | Chilled: 0∘C to +5∘C | Freezer/Meat: −18∘C to −25∘C |
| Insulated Box Material | Exterior/Interior: Fiberglass Reinforced Plastic (FRP) or Stainless Steel | Chosen for durability, hygiene, and non-light absorption. |
| Insulation Core: High-density Polyurethane (PU) Foam | "Sandwich" structure for high thermal insulation. |
| Insulation Thickness | Sides/Top/Front: Typically 80 mm to 100 mm | Thicker insulation is common for deep-freeze (≤−18∘C) requirements. |
| Floor: Typically 80 mm to 105 mm | Often includes a protective layer like aluminum checkered plate. |
| Meat Hook System | Type: Aluminum alloy guide rails on the ceiling | The rails are typically integral to the ceiling structure for support. |
| Additional Features: Meat hooks, sometimes with T-shaped ventilation grooves on the floor. | Essential for hanging carcasses (e.g., beef, pork) to prevent contact with the floor and ensure proper cold air circulation. |
| Box Interior Features | Aluminum alloy ventilation guide rails/slots on the floor | Ensures better cold air circulation around the cargo. |
| Side Door | Often optional for easier loading/unloading. |
| Internal LED Lighting |
| Specification | Example Value |
| Refrigeration Unit | Thermo King RV-380 (or similar) |
| Temperature Set Range | −25∘C to +30∘C |
| Refrigerant Type | R404A |
| Refrigerating Capacity (W) | Approx. 2,300 W at −25∘C ambient 30∘C |
| Air Volume | Approx. 1,500m3/h |
| Item | Description | Specification | qty |
| 1 | Crane | 2 tons max lifting capacity | 1 |
| 2 | exciter lamp | 220V | 1 |
| 3 | wall fan | 220V | 1 |
| 4 | Power Distribution Box | 220/380V | 1 |
| 5 | Grinding machine | M3220, Grinding wheel diameter 200mm ,220V | 1 |
| 6 | bench vice | 150mm | 1 |
| 7 | Oxygen bottle | 40L | 1 |
| 8 | Acetylene cylinder | 20L | 1 |
| 9 | workbench | 550x1550 | 1 |
| 10 | welding machine | model:ZX7-400 working voltage 380V | 1 |
| 11 | drilling machine | 3-16mm, | 1 |
| 12 | Generator Set | 380 / 220V, three-phase four wire | 1 |
| 13 | Multifunctional lathe | 1540*625*1740,400kg
Rotation diameter 320
Maximum work length 750mm
1.1kw | 1 |
| 14 | Folded Chair |
| 2 |
| 15 | Shrink tube machine | Ф6-Ф51 | 1 |
| 16 | Air compressor |
|
|
